Cable MT NFC 33-226 12/20 (24) kV
NFC 33226 12/20 1x150 AL
Nexans ref. 57261150500
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 150 mm²
- Number of cores: 1
NFC 33226 12/20KV 1x240 AL
Nexans ref. 57261240500
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Number of cores: 1
NFC33-226 12/20 3x240 AL C2
Nexans ref. 57265240510
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Number of cores: 3
NFC33-226 12/20KV 1x185 CU C2
Nexans ref. 57261185620
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x185 CU C2
Nexans ref. 57261185520
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 185 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x240 AL C2
Nexans ref. 57261240510
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x240 CU C2
Nexans ref. 57261240520
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 240 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x400 AL C2
Nexans ref. 57261400520
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 400 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x630 AL C2
Nexans ref. 57261630500
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 630 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x630 AL C2
Nexans ref. 57261630520
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 630 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x70 CU C2
Nexans ref. 57261070520
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 70 mm²
- Number of cores: 1
NFC33-226 12/20KV 1x95 AL
Nexans ref. 57261095500
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Number of cores: 1
NFC33-226 12/20KV 3x150 AL
Nexans ref. 57265150500
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 150 mm²
- Number of cores: 3
NFC33-226 12/20KV 3x240 AL
Nexans ref. 57265240500
- Packaging: m
- Conductor material: Aluminum
- Conductor cross-section: 240 mm²
- Number of cores: 3
NFC33-226 12/20KV 3x95 AL
Nexans ref. 57265095500
- Packaging: m
- Conductor material: Copper
- Conductor cross-section: 95 mm²
- Number of cores: 3
Description
Description
Usage
NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV. They are AD7 following NF C 13-200 with a water pressure < 0,2 bar.

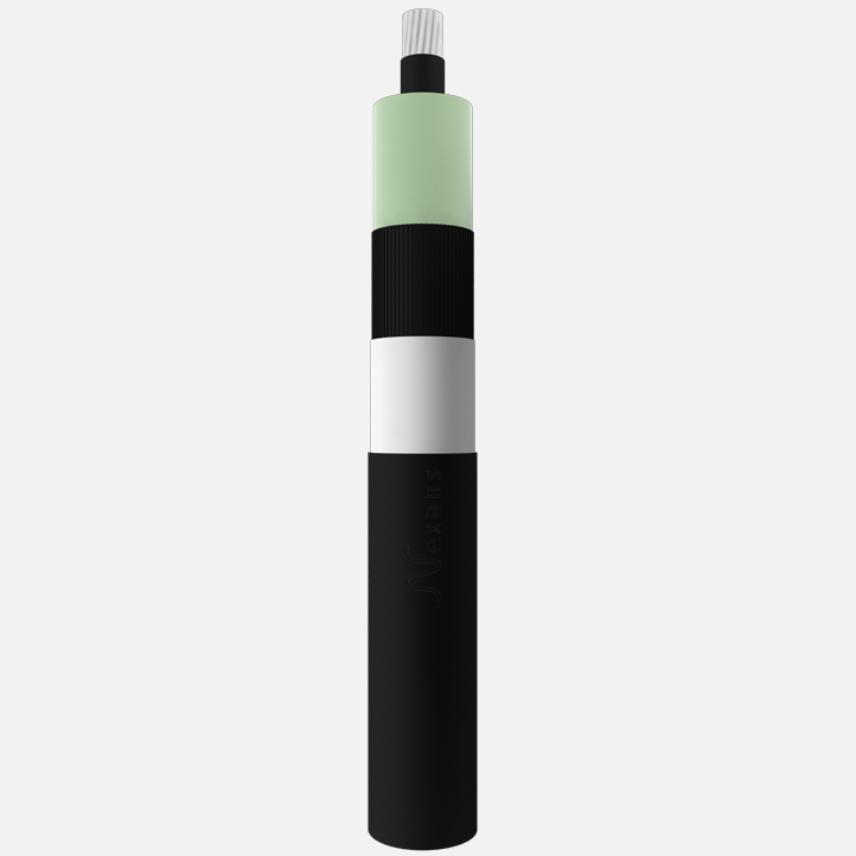

Design
The cable is made of 1 or 3 bunched cores.
Aluminium screen is made to ground short-circuit currents of EdF network, up to 1000 A for 1 s. for underground networks.
Options
NF C 33-226 cables can be manufactured with the following options:
- Copper conductor
- Other voltage
- Other section
- Grounding conductor
- Thicker aluminium screen
- Bunch
- Re-enforced burying resistance (EDR) is ensured with an extruded polyethylene protection.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Marking
Example NEXANS - plant number - NF C 33-226 int. designation- section - Al - 12/20 (24) kV - year - month - installation guide type - G sheath thickness - SC semi-conductor thickness - EC screen thickness - C2 RT installation temperature
Core identification: 1, 2, 3 helix-wise.
The marking is metric over one core sheath, as well as a tracing mark.
