Modular Patch Panels for Keystone Connectors

Application

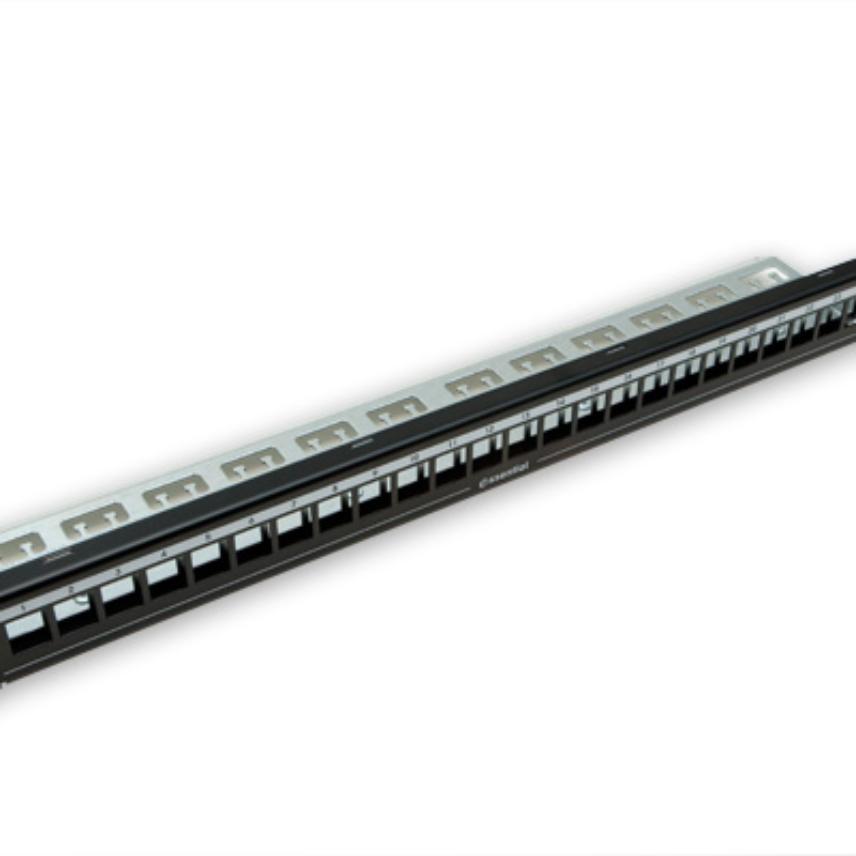

Nexans modular patch panels for keystone connectors are based on 19" frame dimensions and can accommodate up to 24 keystone connectors on 1U.

Note: LANmark Snap-In connectors need to be equipped with keystone clip (N429.625 or N429.626) to fit into Keystone Panels series.

Design

The patch panels are designed to accomodate 24 keystone connectors.

The metalwork at the back of the panel is made of unpainted steel to enable the necessary earthing and bonding when using shielded cable and connectors. The painted front plate allows a neat flush mounting of the connectors.

The panels have screen-printed numbering 1-24 above the ports and a labelling field at the right end for patch panel numbering or identification.

Installation

The Nexans keystone connectors can easily be latched in place without the need for any tool. They are also easy to remove from the panel, when necessary.

The panels feature rear cable management for tie-wraps to ensure cable retention and strain relief and are supplied with fixings.
