Essential-6 Patch Panels
Essential-6 Patch Panels
- Complies to the latest Category 6 standard
- Punchdown from the top or the rear side
- Unshielded
Essential-6 PCB Patch Panel Unscreened 24 RJ45 Cat 6 Rear Connect Black
Réf. Nexans N500.206
- Conditionnement: Unité
Essential-6 Patch panel 1HU 24 Cat 6 ports, rear connection, black
Réf. Nexans N424.610
- Conditionnement: Unité
Essential-6 Patch panel 1HU 24 Cat 6 ports, top connection, black
Réf. Nexans N424.613
- Conditionnement: Unité
Description
Description
Normes
-
Normes internationalesIEC 60603-7-4; ISO/IEC 11801
Application

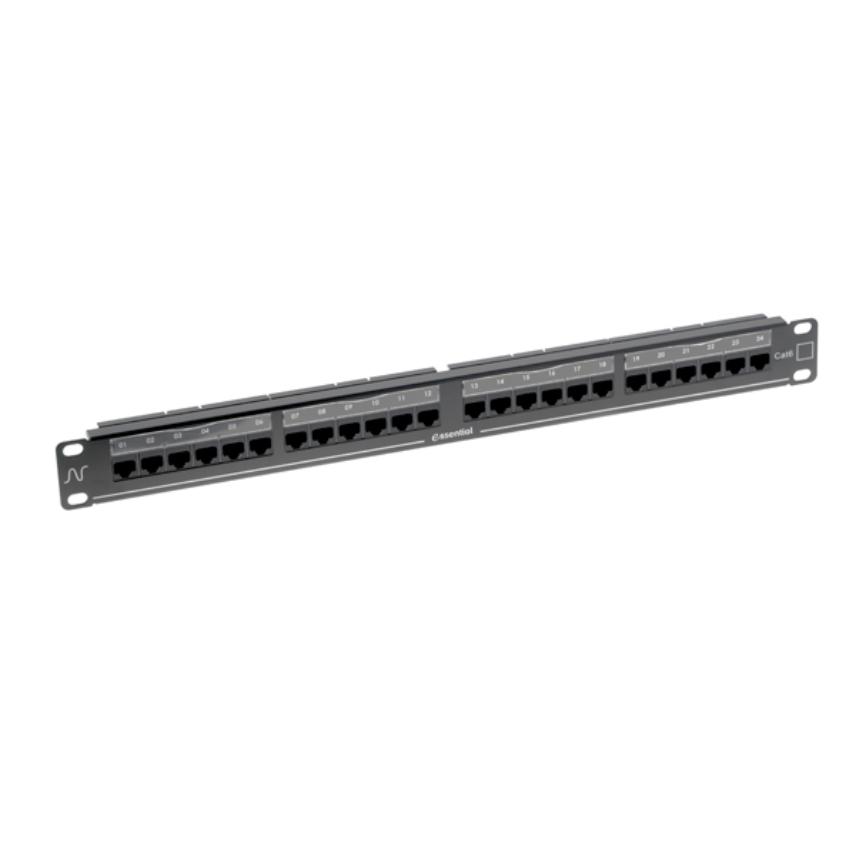

The Nexans Essential-6 patch panels are based on 19" frame dimensions and have 24 Category 6 RJ45 ports on 1HU. They support Class E applications up to 250 MHz. When the panels are installed in conjunction with Essential-6 cable and outlets, a 25 year Class E Link Certificate can be obtained from the Nexans e-service site.
Design
The Essential-6 patch panels are compatible with the complete Essential-6 range and can be used with all types of UTP Category 6 cable with solid wire from 22 to 24 AWG. The panels are available in either black or white finish.

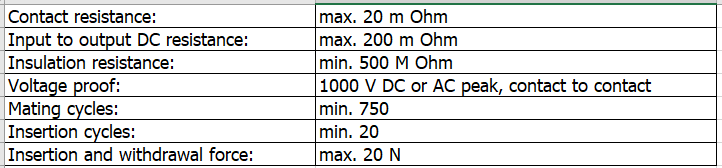

Performance
The Essential-6 patch panels are compliant with the specifications of ISO/IEC 11801 and IEC 60603-7.
Installation
- Fast and easy termination of IDC blocks by LSA+ punchdown tooling.
- Colour code T568A and T568B (Product dependent).
- Supplied with fixings and tie-wraps.
